How to Choose the Right Louver Actuator for Global Sourcing

Choosing the right Louver Actuator for global sourcing is not just a matter of matching voltage or buying the lowest-priced unit. The actuator must fit the louver’s size, blade arrangement, operating load, control signal, and installation environment. A unit tested on a clean bench may behave differently beside a sun-heated façade or in a humid mechanical room. Small details matter.

“Specify the operating conditions before comparing the price,” says Daniel Mercer, a fictional sourcing specialist whose quotation is illustrative, not a real industry citation.

For a dependable shortlist, document the required torque, stroke, duty cycle, fail-safe position, enclosure rating, and control method. Ask suppliers for current datasheets, test evidence, dimensional drawings, and clear warranty terms. Then check that the proposed model matches the actual louver assembly—not merely a similar product photograph. Global sourcing adds practical friction: lead times, spare-part access, communication gaps, and inconsistent naming can complicate an otherwise sound choice. Ask direct questions. Keep written records.

There is no perfect specification. Some projects still uncover installation constraints late, and that deserves reflection, not concealment. A careful comparison can reduce surprises, but site verification remains essential. This guide outlines how to assess performance, supplier capability, documentation, and lifecycle support before selecting a Louver Actuator for an international project.

Table of Contents [Hide]

1 Define the Louver System and Its Operating Requirements

2 Compare Actuator Types, Power Sources, and Control Options

3 Check Compatibility, Environmental Ratings, and Safety Standards

4 Assess Supplier Reliability, Certifications, and Global Logistics

5 Compare Total Cost and Validate Samples Before Ordering

Define the Louver System and Its Operating Requirements

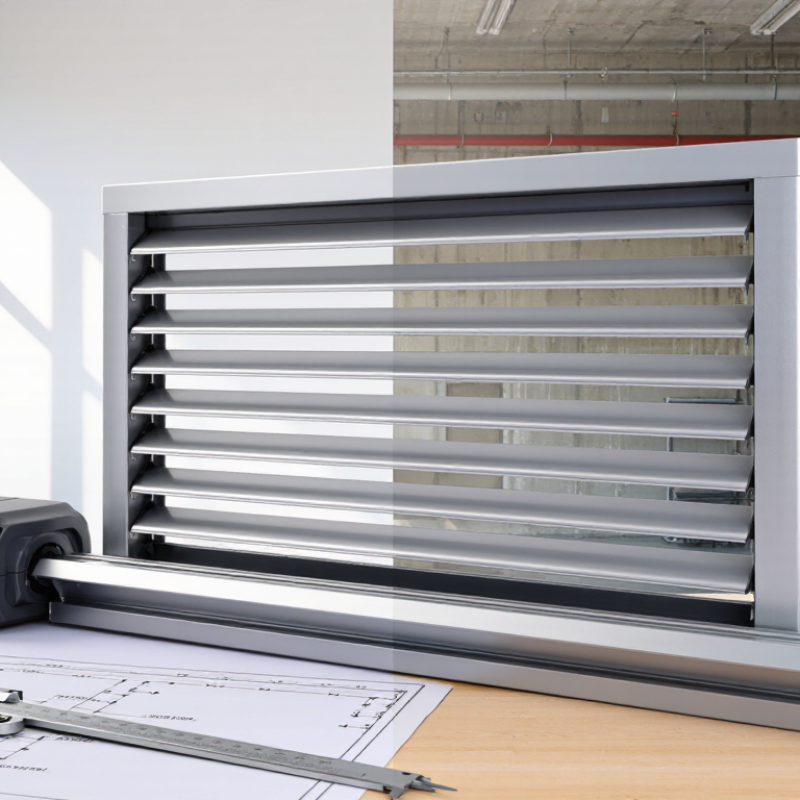

How to Choose the Right Louver Actuator for Global Sourcing

Define the Louver System and Its Operating Requirements

Before comparing actuators, describe the louver itself. Record blade width, material, linkage arrangement, and the number of blades moving together. A small aluminum louver in a plant room may need a different drive from a large exterior bank exposed to gusts. Measure the actual opening angle, too. “Fully open” is not always the same across designs.

Next, define how the system must operate. Note whether it opens for ventilation, smoke control, temperature regulation, or another specified function. Estimate the force needed to move the blades, including friction at pivots and resistance from seals. If possible, test the assembly under realistic conditions rather than relying only on catalog calculations. I have seen a smooth bench test hide a stiff linkage in the installed frame. A useful reminder.

Specify the operating environment and control pattern. Will the actuator run occasionally, cycle throughout the day, or remain in one position for long periods? Record expected supply voltage, available space, ambient temperature, moisture, dust, and exposure to wind. Also clarify whether the system needs position feedback, manual override, or a fail-safe response during power loss. Some details may change after installation; document assumptions rather than treating early estimates as facts. This makes supplier comparisons more meaningful.

Compare Actuator Types, Power Sources, and Control Options

Choosing a louver actuator starts with the blade load, operating frequency, and site environment. Electric actuators suit repeatable positioning and are widely compatible with building automation systems. Pneumatic units can work well where compressed air is already available, but they add air-system maintenance. Manual or spring-return options may suit simple openings or fail-safe applications. Match the actuator’s torque rating to the louver assembly, not just its size. A small mismatch can cause slow movement or premature wear.

Power and control choices shape installation costs. Common options include low-voltage DC, line-voltage AC, and pneumatic supply. For control, on/off operation is simple; modulating signals allow finer positioning, while networked control can support monitoring across larger sites. The International Energy Agency’s 2023 Global Status Report for Buildings and Construction estimates buildings use about 30% of global final energy. That makes reliable airflow control relevant, though an actuator alone cannot guarantee energy savings. Specify environmental ratings, signal compatibility, feedback needs, and manual override requirements before sourcing across regions.

Tips: Request a duty-cycle test and wiring diagram. Check voltage and control protocols against local equipment. Small detail, big headache. I would also leave room for commissioning adjustments; drawings rarely capture every friction point on a real louver.

How to Choose the Right Louver Actuator for Global Sourcing - Compare Actuator Types, Power Sources, and Control Options

Actuator Type	Typical Power Source	Common Control Options	Key Advantages	Limitations and Checks	Suitable Applications	Global Sourcing Checks
Electric linear actuator Uses a moving rod to push or pull a linkage.	Commonly 24 V AC/DC or 100–240 V AC, depending on model.	On/off, floating (three-point), or modulating control such as 0–10 V or 4–20 mA, when supported.	Precise positioning; easy integration with building automation and control panels; no compressed-air supply required.	Confirm stroke length, force, operating time, mounting geometry, and duty rating. Control signals are not interchangeable across models.	Small to medium dampers and louvers where controlled blade positioning is required.	Check voltage and frequency compatibility, wiring diagrams, connector type, mounting dimensions, and required conformity documentation for the destination market.
Electric rotary actuator Turns a shaft or drive arm through a specified angle.	Commonly 24 V AC/DC or 100–240 V AC, depending on model.	On/off, floating (three-point), or modulating control; some models provide position feedback.	Directly drives rotary shafts; available in compact forms; can provide repeatable positioning and feedback.	Verify torque, rotation angle, shaft or clamp size, travel time, and whether the actuator needs an external linkage.	Rotary louver and damper assemblies, especially where the mechanism is designed around a rotating shaft.	Confirm shaft compatibility, actuator orientation, enclosure rating, cable-entry requirements, and the exact control and feedback signals.
Spring-return electric actuator Electric drive with a mechanical return spring.	Usually an electric supply matched to the selected actuator; models may use low-voltage or mains power.	Often on/off; some models support additional control functions. The spring moves the mechanism to its configured safe position when power is lost.	Can provide a defined power-loss position without relying on a separate backup power source.	Spring return affects available operating force and travel time. Confirm fail position, required torque, and whether the application needs open-on-failure or close-on-failure behavior.	Ventilation or smoke-control applications where a specified position during power loss is part of the system design.	Check applicable safety and fire-system requirements, permitted use, documentation, and compatibility with the louver assembly; do not assume all spring-return units are fire-rated.
Pneumatic rotary actuator Uses compressed air to rotate a shaft or linkage.	Compressed air; a solenoid valve or pneumatic control device may also require electrical power.	On/off through a solenoid valve; proportional positioning is possible with a suitable positioner and control arrangement.	Useful where compressed air is already available; can deliver rapid operation and can be configured with spring return.	Requires suitable air pressure, air quality, valves, and tubing. Positioning accuracy depends on the actuator and control equipment.	Industrial facilities and process environments with an existing pneumatic supply.	Confirm pressure range, air connections, valve voltage, tubing standard, environmental rating, and availability of local pneumatic service parts.
Pneumatic linear actuator Uses air pressure to create straight-line motion.	Compressed air; electrical power may be needed for a solenoid valve or control accessories.	Typically on/off; intermediate positioning requires compatible pneumatic controls and position feedback or a positioner.	Provides direct push-pull motion and can suit mechanisms designed for linear travel.	Confirm stroke, force at the actual operating pressure, air consumption, end-stop arrangement, and behavior when air pressure is lost.	Linear-linkage louvers in facilities with a maintained compressed-air system.	Check local availability of compatible valves, fittings, seals, and maintenance support, as well as pressure and connection standards.
Electric actuator with battery backup or external fail-safe supply Uses an electric drive with a separate backup arrangement.	Primary AC or DC supply plus a specified battery or backup power system.	On/off, floating, or modulating control depending on the actuator; backup behavior depends on the system design.	Can support continued operation or a defined movement after loss of normal power when correctly sized and configured.	Backup capacity, battery condition, transfer method, and required movement must be engineered for the application; not every actuator supports backup operation.	Sites requiring a planned response to power interruptions where a spring-return design is unsuitable.	Verify backup-system compatibility, battery replacement availability, charging requirements, electrical approvals, and the specified response during a power failure.

Selection note: Actuator specifications vary by model and supplier. Before ordering, match the actuator to the louver’s required torque or force, travel, mounting arrangement, operating environment, control signal, supply voltage, and required position during a power or air-supply failure.

Check Compatibility, Environmental Ratings, and Safety Standards

How to Choose the Right Louver Actuator for Global Sourcing

Check Compatibility, Environmental Ratings, and Safety Standards

A louver actuator must match the damper’s torque, stroke, voltage, and control signal. Check the louver drawing and measure blade travel; a small mismatch can leave blades partly open. Confirm whether the system needs on/off, floating, or modulating control. Then verify wiring diagrams and fail-safe behavior during power loss. These details matter in real installations, where a compact actuator may sit behind a crowded access panel. The Global Status Report for Buildings and Construction 2023, published by the UN Environment Programme and GlobalABC, estimates that buildings used 34% of global energy demand in 2022. Reliable airflow control supports efficient operation, but only when the actuator and louver work together.

Environmental ratings deserve equal attention. IEC 60529 defines IP enclosure protection levels, so compare the specified rating with exposure to dust, water, and cleaning routines. An IP rating does not prove resistance to salt air, vibration, or extreme temperatures; check those conditions separately against the supplier’s test documentation. For safety, review applicable electrical and machinery requirements in the destination market, and request traceable test reports rather than relying on a catalog claim. I still see sourcing teams focus on price too early. That can be a costly shortcut. Ask for operating-temperature limits, service life data, wiring details, and evidence that the selected model suits the actual installation—not just the specification sheet.

Assess Supplier Reliability, Certifications, and Global Logistics

How to Choose the Right Louver Actuator for Global Sourcing

Assess Supplier Reliability, Certifications, and Global Logistics

A louver actuator may look simple on a drawing, but missed delivery dates or mismatched mounting dimensions can delay an entire ventilation project. Assess suppliers using documented production capacity, inspection records, and traceable test results—not just a low quotation. Ask for cycle-life data under the load and operating conditions you expect. Check that certificates match the specific product and manufacturing site; a general company certificate does not prove every actuator model has been tested. The World Bank’s 2023 Logistics Performance Index assessed 139 economies across areas including customs, infrastructure, and shipment timeliness. Use those factors to discuss realistic transit times and delivery risks with suppliers.

Tips: Request a sample, dimensional drawing, wiring diagram, and packing details before approving an order. Confirm voltage, torque, stroke, and fail-safe requirements in writing. Ask how spare parts are identified and shipped. Small details matter.

For global shipments, clarify Incoterms, export packaging, document responsibilities, and who handles damage claims. The UN Conference on Trade and Development reports that over 80% of world merchandise trade by volume moves by sea, making port delays and container handling relevant to sourcing plans. Compare the supplier’s proposed route with your project schedule, and allow time for customs clearance and incoming inspection. A supplier may communicate well during quoting, then go quiet when production slips; that possibility deserves a candid conversation before commitment.

How to Choose the Right Louver Actuator for Global Sourcing

Suggested supplier evaluation weighting: prioritize reliability, verify relevant certifications, and confirm the supplier can support your destination markets and delivery requirements. Adjust the weights to match your project.

These percentages are a buyer-defined starting-point framework, not measured industry statistics. Verify certificates, product ratings, lead times, and shipping terms directly with each supplier.

Compare Total Cost and Validate Samples Before Ordering

A low unit price can hide expensive surprises. When comparing louver actuators from overseas suppliers, calculate the landed cost, not just the quotation. Include tooling, packaging, freight, import charges, inspection, and replacement parts. Ask whether the quoted price covers the required voltage, control signal, torque, and mounting hardware. A cheaper actuator may need an adapter or extra wiring, adding labor at the installation site. Small costs add up.

Check operating life and warranty terms, too. A longer warranty is useful only if replacement procedures and shipping responsibilities are clear. Request written details about rated torque, cycle testing, temperature range, and ingress protection. Then compare offers using the same specification sheet. Otherwise, you may be comparing different products without noticing. That happens more often than buyers expect.

Before placing a large order, test samples in the actual louver assembly. Confirm that the actuator reaches both end positions, moves the blades evenly, and fits the available space. Run repeated cycles, listen for unusual noise, and check current draw under load. Record the results, including any small fit issue; it may matter later. Approve a sample against a signed specification and retain it as a reference. One sample is not enough to prove every production unit will match, so agree on production checks and acceptance criteria before ordering.
